Introducing UI components to an SDK brings an additional dimension to an already complex setup comprising a low-level API and a client wrapper on top of it. Now both developers (who write the application) and end users (who use the application) interact with your API. This might not appear as a game changer at first glance; however, we assure you that it is. Involving an end-user has significant consequences from the API / SDK design point of view as it requires much more careful and elaborate program interfaces compared to a “pure” client-server API. Let us explain this statement with a concrete example.

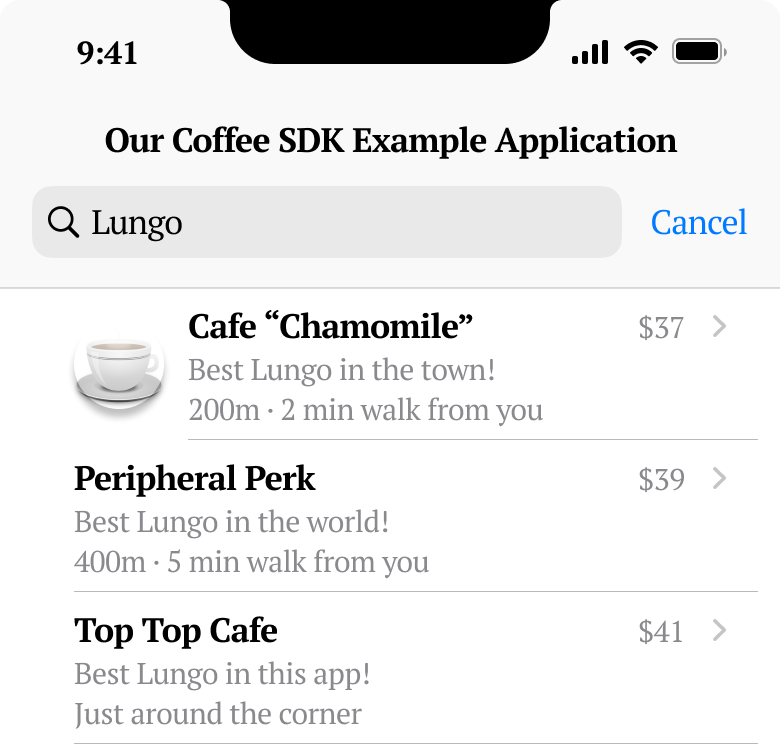

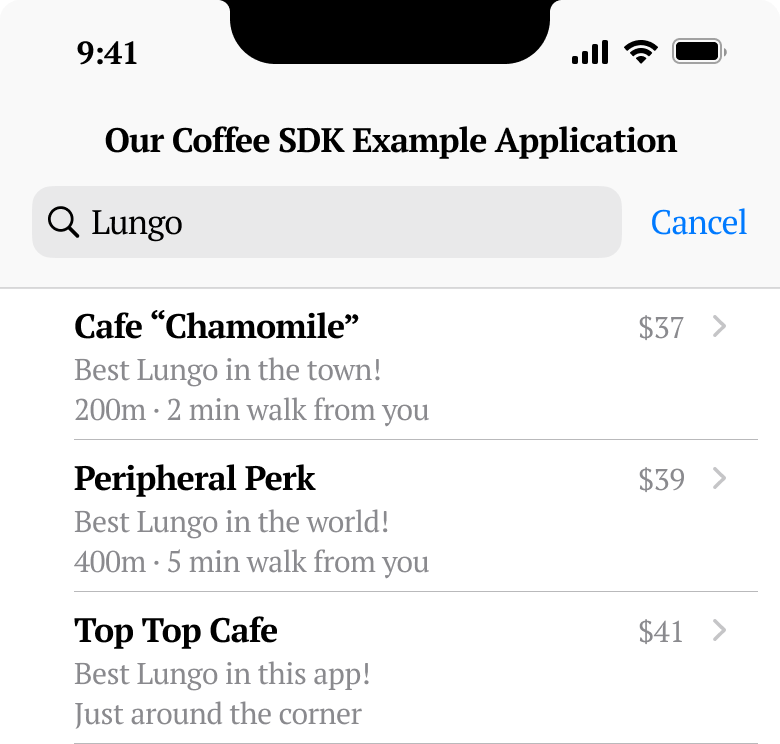

Imagine that we decided to provide a client SDK for our API that features ready-to-use components for application developers. The functionality is simple: the user enters a search phrase and observes the results in the form of a list.
The user can select an item and view the offer details with available actions.
To implement this scenario, we provide an object-oriented API in the form of, let's say, a class named SearchBox
that realizes the aforementioned functionality by utilizing the search
method in our client-server API.
The Problems
At first glance, it might appear that this UI is a superstructure atop the search
method that simply visualizes the results. Unfortunately, that is not the case. Let us enumerate the problems we have never encountered while developing APIs without visual components.
1. Coupling Heterogeneous Functionality in One Entity
We have placed two buttons (to make an order and to show the coffee shop's location) plus a cancel action onto the offer view panel. These buttons may look identical and they react to the user's actions in the same way, but the way the SearchBox
component handles pressing each of them is completely different.
Imagine if we allow developers to add their own action buttons onto the panel, for which purpose we introduce a Button
class. We will soon learn that this functionality will be used to cover two diametrically opposite scenarios:
Adding extra buttons to the panel, such as “Call the coffee shop,” while sharing the design with the standard ones
Changing the appearance of the standard buttons to match the partner's corporate design guidelines while preserving the functionality intact.
Furthermore, a third scenario is possible: developers might want to create a “Call” button that both looks different and performs different actions but inherits the UX of the standard button, such as animating button presses, stacking with other buttons, etc.
From the developers' perspective, this means that the Button
class should allow redefining the appearance of the button, the actions it performs, and the UX elements — in other words, each of these three subsystems might be replaced with an alternative implementation so that the other two subsystems continue working normally.
2. Shared Resources
Imagine that we need to allow developers to programmatically create a SearchBox
to process a query. This functionality seems reasonable as it would allow displaying a “find lungo nearby” banner in the application, clicking on which would show a SearchBox
with the pre-entered “lungo” query. Developers will just need to open the corresponding screen in the app and call a method that we are to design. Let's simply name it search
.
Two of our search
methods (the “pure” client-server one and the component-bound SearchBox.search
) accept the same parameters and emit the same results. However, their behavior is totally different:
If requested several times,
SearchBox.search
must discard all server responses except for the one corresponding to the latest request (even if it is not the one received last).Additional question: What should
SearchBox.search
return if it is interrupted by another search? If an error, then what was the error of the caller? If a success, then why are the results not displayed?
This leads to another problem: What should happen if
SearchBox.search
was called when it was processing a request by an end user? Which of the callers is more important — a developer or a user?
While implementing a client-server API, we don't typically face this issue. Every actor calling a search function will receive the response independently. With UI components this approach doesn't work as all the components ultimately share one common resource: the screen of the application and the user's attention.
Any asynchronous operation in a UI component, especially if it is visibly indicated with animation or other continuous action, could disrupt other visual operations, including cases when the disruption happened because of the user's actions.
3. Multiple Inheritance in Entity Hierarchies
Imagine that a developer decided to enhance the design of the offer list with icons of coffee shop chains. If the icon is set, it should be shown in every place related to a specific coffee shop's offer.
Now let's also imagine that the developer additionally customized all buttons in the SDK by adding action icons.
A question arises: If an offer of the coffee chain is shown in the panel, which icon should be featured on the order creation button: the one inherited from the offer properties (the coffee chain logo) or the one inherited from the action type of the button itself? The order creation control element is incorporated into two entity hierarchies (visual one and data-bound one) and inherits from both equally.
It is very easy to demonstrate how coupling several subject areas in one entity leads to highly sophisticated and unobvious logic. As the same arguments are applicable to the “Show location” button as well, it is kind of obvious that specialized options should take precedence over general ones. In our case, the type of a button should have more priority than some abstract “icon” data property.
But it is not the end of the story. If the developer still wants exactly this, i.e., to show a coffee shop chain icon (if any) on the order creation button, then what should they do? Following the same logic, we should provide an even more specialized possibility to do so. For example, we can adopt the following logic: if there is a checkoutButtonIconUrl
property in the data, the icon will be taken from this field. Developers could customize the order creation button by overwriting this checkoutButtonIconUrl
field for every search result:
const searchBox = new SearchBox({
// For simplicity, let's allow
// to override the search function
searchFunction: function (params) {
const res = await api.search(params);
res.forEach(function (item) {
item.checkoutButtonIconUrl =
<the URL of the icon>;
});
return res;
}
})
Formally speaking, this code is correct and does not violate any agreements. However, the readability and maintainability of this code are a catastrophe. The last place the next developer asked to change the button icon will look is the offer search function.
This functionality would appear more maintainable if no such customization opportunity was provided at all. Developers will be unhappy as they would need to implement their own search control from scratch just to replace an icon, but this implementation would be at least logical with icons defined somewhere in the rendering function.
NB: There are many other possibilities to allow developers to customize a button nested deeply within a component, such as exposing dependency injection or sub-component class factories, giving direct access to a rendered view, allowing to provide custom button layouts, etc. All of them are inherently subject to the same problem: it is a very complicated task to consistently define the order and the priority of injections / rendering callbacks / custom layouts.
Consistently solving all the problems listed above is unfortunately a very complex task. In the following chapters, we will discuss design patterns that allow for splitting responsibility areas between the component's sub-entities. However, it is important to understand one thing: full separation of concerns, meaning developing a functional SDK+UI that allows developers to independently overwrite the look, business logic, and UX of the components, is extremely expensive. In the best-case scenario, the nomenclature of entities will be tripled. So the universal advice is: think thrice before exposing the functionality of customizing UI components. Though the price of design mistakes in UI library APIs is typically not very high (customers rarely request a refund if button press animation is broken), a badly structured, unreadable and buggy SDK could hardly be viewed as a competitive advantage of your API.
